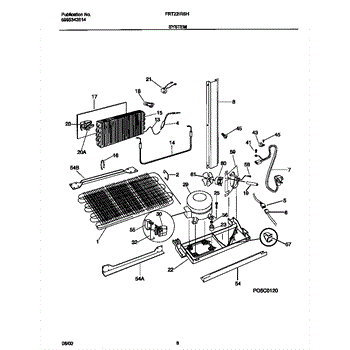

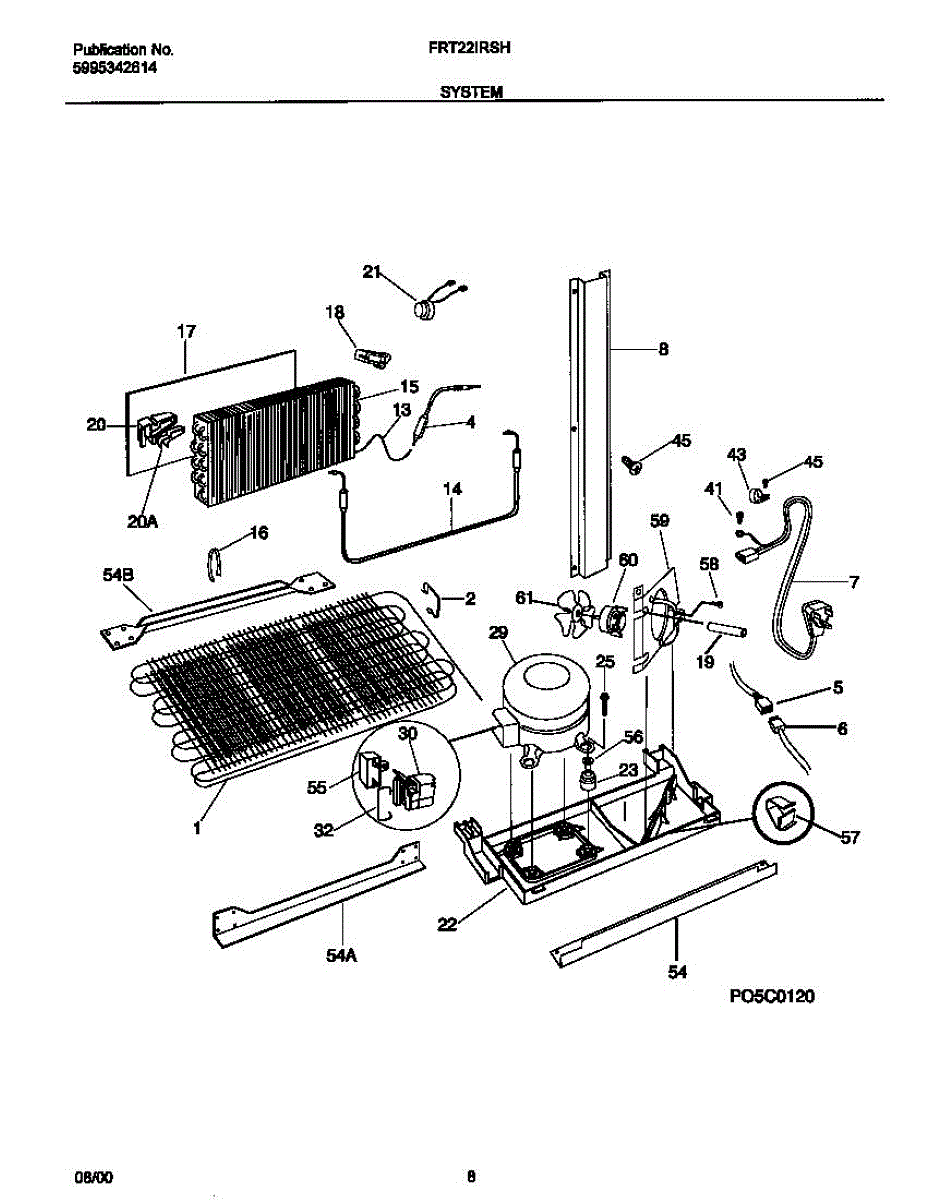

Parts for Frigidaire FRT22IRSHB4: 05 - System Parts

Includes service line.

Fix ice buildup on evaporator coils with this defrost heater. Solves blocked vents and poor cooling. Mounts at evaporator, moderate DIY repair.

Aluminum strap secures the defrost heater against the evaporator coil. Replace if broken, cracked, or missing to maintain proper heater contact.

This molded styrofoam insulation block fits alongside the refrigerator evaporator coil to help direct airflow and reduce frost buildup for more consistent cooling. It replaces a damaged or missing left-side evaporator coil insulator. What it does

• Provides thermal insulation and airflow channeling around the evaporator coil
• Helps reduce moisture/frost accumulation on the coil when properly installed
• Restores proper ducting and airflow in the freezer/refrigerator evaporator area
• Commonly used when the original foam insulator is cracked, broken, or missing

• Intended for left-side placement only; confirm orientation before installing
• Handle gently to avoid tearing the foam; ensure a snug fit against the coil and cabinet
• Disconnect power to the appliance before accessing the evaporator area
• If other evaporator components are damaged or frozen, check for underlying issues before reinstalling

Freezer runs constantly or has frost buildup? The defrost thermostat regulates temperature to prevent ice on coils. DIY-friendly repair in 1-2 hours.

Rubber grommet that mounts and cushions the compressor to reduce vibration transfer. Replace if cracked, worn, or missing to restore quiet operation.

Secures the compressor to the refrigerator frame. Replace this hex washer head screw if broken, stripped, or missing during compressor service or repair.

Freezer not cooling or running constantly? This compressor kit circulates refrigerant through the system. Advanced repair requires refrigerant handling.

Used to hold the original electrical components to the side of the compressor.

Replacement screw for various appliances. Used to secure panels, components, or housing. Replace if stripped, corroded, missing, or damaged hardware.

Secures and protects wiring harness from strain damage. Replace if cracked, broken, or wires show wear. Verify fit with your model number listed.

Refrigerator not cooling or compressor won't start? A failed run capacitor prevents the compressor from running. DIY repair in 10-15 minutes with video guide.

Compressor mounting insert that secures the refrigerator compressor to the base. Replace if cracked, broken, or missing to restore proper support.

This #8-32 x 3/8 screw secures appliance panels, brackets, and assemblies. Replace a missing or stripped fastener to keep parts tight and aligned, reduce vibration, and restore proper fit in compatible refrigerators and freezers.

• Machine-thread fastener sized #8-32, 3/8-inch length
• Secures control housings, trims, covers, and support brackets per model design
• Replaces missing, worn, or corroded screws that cause loose or rattling parts
• Helps maintain alignment and stability after service

• Unplug the appliance; shut off water if applicable
• Match thread size to the original and start by hand to avoid cross-threading
• Use the correct driver; do not overtighten, especially into plastic
• Verify component alignment and operation after fastening

• Thread size: #8-32
• Length: 3/8 inch

Refrigerator not cooling properly or making loud noises? The condenser fan motor shroud directs airflow for proper cooling. Moderate DIY repair.

Color: Black

This spacer tube positions and supports a refrigerator tube or small component to keep lines aligned and reduce vibration. Replaces a worn or missing spacer to help stop rubbing, rattling, or misalignment of tubing or nearby parts. What it does:

• Holds and centers a tube or small assembly to maintain proper clearance
• Prevents tubing from rubbing against cabinet walls or other components
• Reduces vibration and noise caused by loose or misaligned lines
• Helps maintain correct routing to lower risk of chafing or wear

• Disconnect power and shut off water supply before starting
• Typically installs by sliding or snapping onto the tube or mounting boss; minimal tools needed
• Inspect surrounding tubing and clips; replace any damaged fasteners to ensure secure routing

Secures and protects wiring harness from strain damage. Replace if cracked, broken, or wires show wear. Verify fit with your model number listed.

This is a factory-style replacement screw used to secure appliance components. It restores proper fastening where the original screw is missing, stripped, or damaged so panels and assemblies stay firmly attached. What it does:

• Fastens panels, brackets, or components to the appliance frame or assemblies
• Replaces missing or damaged mounting hardware that can cause rattles or loose parts
• Provides the correct fit and thread engagement for a secure connection
• Helps maintain appliance alignment and safe operation

• Use the matching screwdriver or bit to avoid stripping the head
• Tighten until snug; do not over-torque to prevent thread or part damage
• Turn off power and remove any access panels before working on electrical components

Replacement screw for various appliances. Used to secure panels, components, or housing. Replace if stripped, corroded, missing, or damaged hardware.
