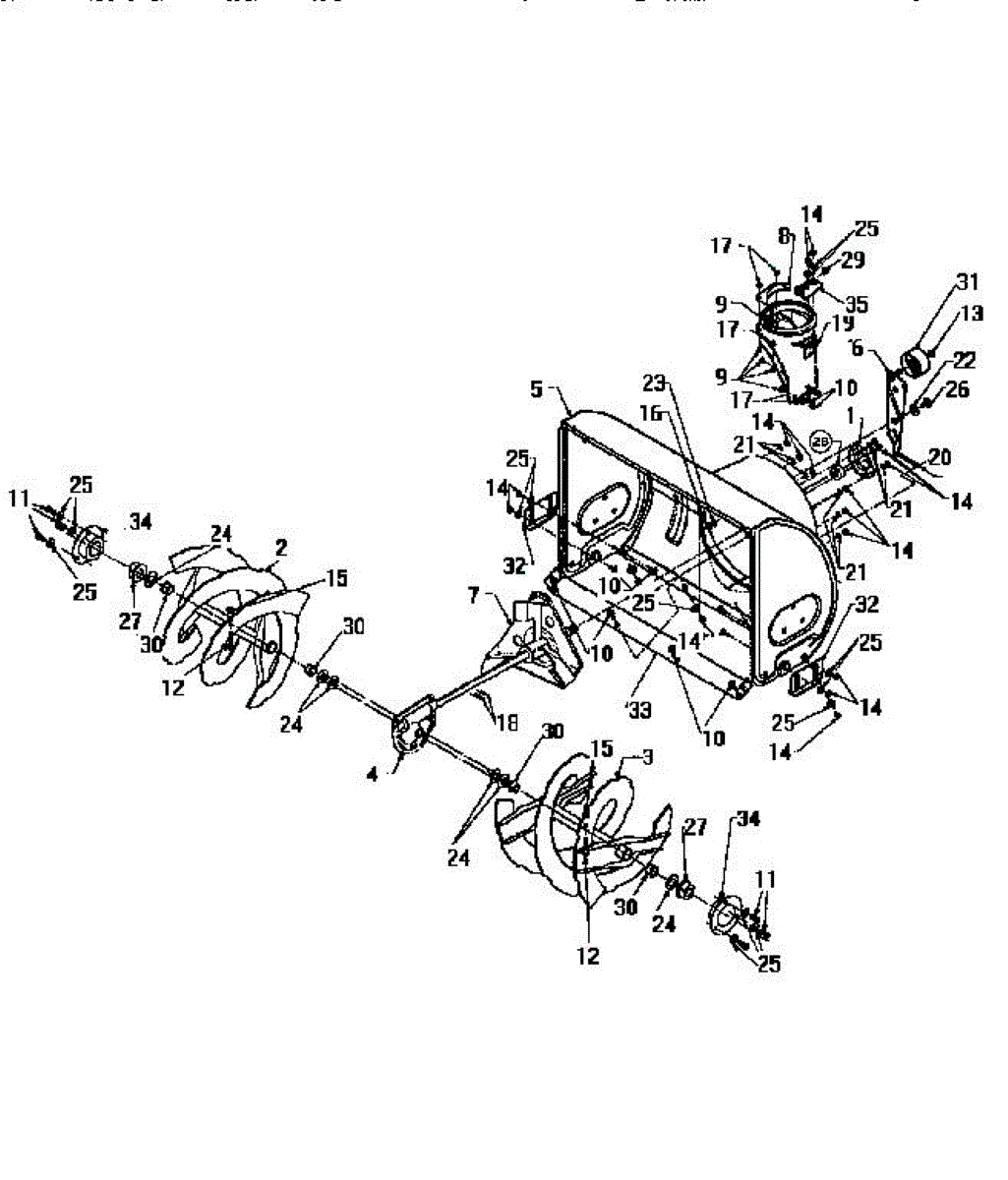

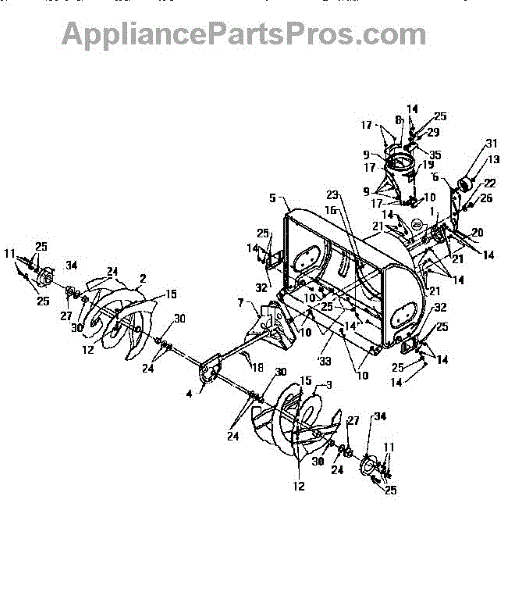

Parts for Craftsman 247885570: Tine Assembly Parts

Snow not clearing or auger not spinning? This right-hand spiral auger assembly rotates to move snow through the housing and out the chute. Replaces worn blades.

Auger won't turn or engages poorly? This 24-inch auger gearbox assembly restores power transfer to clearing paddles. Moderate difficulty repair.

This replacement part is an idler arm assembly. It is a genuine replacement part made by MTD. Idler arm assemblies are meant to help the user steer and maneuver the appliance so that they can move in the desired direction. A new idler arm assembly might be needed if the current one is damaged or missing. These parts can become stripped over time and might need to be replaced. If the user is unable to steer the machine or appliance properly, the idler arm assembly might need to be replaced. Be sure to refer to the appropriate user manual for more information on how to replace this part. This part is a genuine OEM replacement part to ensure long-lasting use and proper fit. This idler arm assembly is sold individually and is sourced directly from the manufacturer.

This carriage bolt is a self-locking bolt designed to be used in an unthreaded square or round hole. These bolts are used in outdoor lawn and garden equipment due to their ability to handle heavy weight loads.Carriage bolts are often used to join lawnmower handles to the base of the mower. Over time, the vibration of the lawnmower may cause the bolt to become loose. During routine maintenance, if the bolt is loose, use a wrench to tighten the nut holding the bolt in place. If the bolt is missing, this carriage bolt replacement can be installed. Push the bolt through the hole; if the fit is snug, it may need to be lightly tapped. Once the bolt is through the other side, thread a nut on the bolt. Tighten the nut with a wrench.This is a genuine OEM part sourced directly from the manufacturer. It is sold as an individual unit and does not come with the nut. This carriage bolt is designed for lawnmowers, snowblowers, and other outdoor lawn and garden equipment manufactured by Bolens, Craftsman, Cub Cadet, Huskey, Troy-Bilt, Turf Pro, MTD, Ryobi, and Mastercut.

A carriage bolt is a type of fastener. It features a smooth rounded head and a square domed top. It has threading, which leads to up to the square shoulder. The purpose of its square is to prevent the bolt from spinning. Once the carriage bolt is inserted through the hole, using a nut and washer can provide additional security. Carriage bolts can corrode and loosen over time. Since it doesn't have a slotted head, a socket wrench is needed when replacing. This bolt carriage replacement is compatible with wood chippers, tillers, string trimmers, lawnmowers, and edgers. It is a genuine MTD product that measures 5/16x.075. It has a smooth rounded head and square shoulder underneath it. This carriage bolt is sold individually.

This replacement part is a hex screw, and it is intended for use in different types of lawn equipment. This is a genuine replacement part made by MTD. This screw can be used in a variety of ways depending on the repair needed. Hex screws are similar to normal screws except they have a six-sided head, like a hexagon. A new hex screw might be needed if the current one is damaged or missing. It is common that screws may become stripped or loose overtime, causing them to fall out. If any parts of the lawn mower are becoming loose or falling off, the hex screw might be missing. This replacement should be fairly easy and should only require a screwdriver and possibly pliers. This part is a genuine OEM replacement part and is sold individually. Be sure to purchase the correct amount as some appliances require more than one hex screw.

Auger won't turn or broke after hitting debris? This shear bolt connects your snow blower's auger to the shaft. Quick 10-minute fix for most models.

Replace a lost, stripped, or corroded nut on your lawn mower, tractor, or outdoor power equipment. Secures components for safe operation.

The lock nut is a piece of standard hardware that may have a variety of applications on lawn and garden equipment, including on engines, housings, and other components. The lock nut offers a secure fit by tightening into a flange that prevents the nut from loosening like a regular nut might. Over time, the flange or the nut can become worn or damaged. In some cases, lock nuts may be lost during the process of other repairs or maintenance. Replacing them with genuine OEM parts like this lock nut is the best solution. This lock nut is compatible with hundreds of machines, including mowers, snowblowers, and chippers from MTD, Troy-Bilt, Cub Cadet, RYOBI, Yard-Man, Yard Machines, Bolens, and Husky. The ¼-inch lock nut has multiple locations and applications, so owners should consult their parts diagram for exact placement and part number identification. This lock nut is made of durable metal and sold as a single unit. Those who need additional pieces will have to order multiple quantities. This part will require a wrench or a socket to replace, as well as pliers and/or a screwdriver to hold the bolt or screw in place.

Chute adapter for snowblowers. Connects the discharge chute to the blower housing. Replace if cracked, broken, or no longer securely holding the chute.

Extension spring for snow blower idler pulley assemblies. Mounts to housing to maintain proper tension in belt drive system. Replace if stretched, broken, or missing.

This lock washer is used frequently for a number of applications on power yard equipment. The size, 5/16, is the default for many small engine housing and manifold applications. Lock washers are used with machined bolts to fasten engine blocks to the housing of the equipment being used. The compressed washer is able to handle the constant vibration of the small gasoline engine without losing the seal between the screw or bolt and the housing. Typically these lock washers only need to be replaced when they are misplaced during repairs or when the screws that attach them have to be chiseled or cut away, meaning the washers are destroyed as well. These OEM certified replacement washers have been manufactured to the same specifications as the originals they are replacing. In addition to lawn mowers, lock washers of this type and size are frequently used on blowers, lawn tractors, cultivators, snowblowers, and trimmers. Brands compatible with this type of washer are Murray, Husky, Poulan, Bolens, Yard-Man, Cub Cadet, Troy-Bilt, Yard Machines, MTD, and Ryobi.

Replacement washer for outdoor power equipment. Secures parts and maintains proper connections. Order this washer if yours is missing or damaged.

This replacement part is a screw, and it is intended for use in different types of lawn equipment. This is a genuine replacement part made by MTD. This specific screw is typically found in snowblowers and is responsible for keeping different parts in place and secure. A new screw might be needed if any current ones are missing or damaged. After years of normal wear and tear screws can become stripped overtime and might need replacing. To replace this part the user should only need a common household screwdriver and possibly pliers if the screws have become wedged in an area. Overall this should be a fairly simple repair depending on the amount of new screws needed.This is a genuine OEM replacement part sourced directly from the manufacturer and is sold individually. Be sure the correct amount of screws are purchased as many machines require more than one to operate successfully.

Auger bearing flange connects to the bearing to reduce friction during operation. Replace if worn or damaged to restore smooth auger rotation. Verify fit.

Flat idler pulley applies tension to your snowblower's belt for proper operation. Replace if noisy, seizing, or causing belt issues. Verify fit by model.

Replacement chute crank bracket for snow blowers. Holds and positions the chute at the proper angle. Replace if cracked, broken, or missing.
