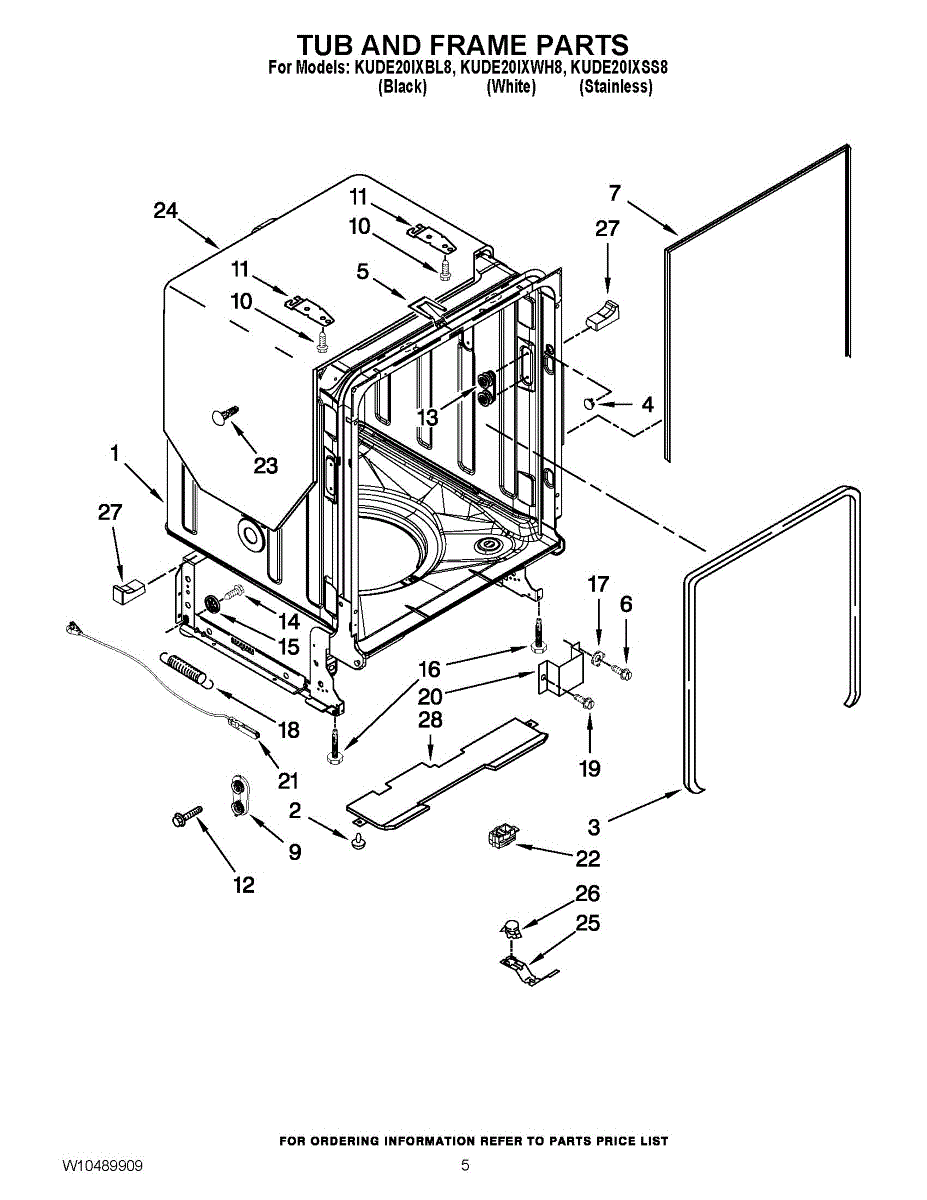

Parts for Kitchenaid KUDE20IXBL8: 05 - Tub And Frame Parts

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Secures interior panels and trim to prevent vibration and movement. Replace when clips break or lose grip. Verify fit with your model number.

Prevents water leaks around your dishwasher door. Replace if you notice pooling water on the floor or visible cracks in the seal. Verify fit by model number.

The Screw Hole Cap is an OEM part for Whirlpool dishwashers. It covers the screw holes, providing a clean and finished appearance while preventing moisture and debris from entering the screw openings. This helps maintain the dishwasher's aesthetic and ensures that screws remain protected from rust and corrosion.

Causes of a bad screw hole cap can include regular wear and tear, accidental impacts, or misplacement during maintenance.

Symptoms of a bad screw hole cap include:

• Missing or loose caps
• Moisture or debris accumulating in screw holes
• Visible wear or damage to the caps

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Fix a dishwasher door that won't latch or stay closed with this strike plate. Provides the contact point for the latch to secure your door properly.

Size: 8-32 x 1/2 inch.

Seals the dishwasher tub to the cabinet opening, reducing noise and preventing gaps. Replace if worn, damaged, or missing for proper fit and sound control.

If your dishwasher door drops, slams, or feels heavy, the door balance mount may be broken. This side-frame bracket anchors the spring system.

Screw secures appliance panels and access covers. Replace missing, stripped, or corroded screws to restore tight fit and eliminate rattles or gaps.

Secures your dishwasher to the underside of the counter. Replace if bracket is broken, cracked, or missing to prevent the unit from shifting forward.

10-24 threaded machine screw secures panels, brackets, and internal assemblies in appliances. Replace missing, stripped, or damaged screws.

The Tub Wheel Assembly is an OEM part for Whirlpool dishwashers. It consists of the wheels and their mounting components that facilitate the smooth gliding of the dishwasher rack in and out of the unit. This assembly is critical for the operation of loading and unloading dishes, ensuring that the racks move smoothly without jamming or causing damage to the dishwasher interior.

Symptoms of a faulty tub wheel assembly include:

• Difficulty in sliding the dishwasher racks.
• Racks getting stuck or derailing during movement.
• Unusual noises when the racks are moved.

The primary causes of wear or damage to the tub wheel assembly can include regular use, excessive load on the racks, or accidental force applied when loading or unloading dishes. These can lead to broken wheels or dislodged fittings, necessitating replacement to maintain functionality.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

10-32 threaded machine screw secures dishwasher panels, trim, and brackets. Replace when missing, stripped, or damaged to restore proper fit.

Rear wheel support that guides and stabilizes the dishwasher rack as it slides. Replace if cracked, broken, or worn to restore smooth gliding motion.

This adjustable leveling leg threads into the appliance base to set height and stabilize the cabinet. Replacing a worn or missing leg helps stop rocking and vibration and helps maintain proper alignment for reliable operation.

• Provides adjustable support at one corner of the appliance
• Helps level the unit for correct alignment with floor or cabinetry
• Reduces rocking, vibration, and rattling noises
• Replaces stripped, bent, cracked, or missing leg

• Disconnect power and, if applicable, shut off water before servicing
• Carefully support or brace the appliance to access the base safely
• Start the new leg by hand to avoid cross-threading; adjust height gradually
• Use a level to check side-to-side and front-to-back, then recheck after positioning

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Pronged cup washer for securing internal dishwasher components. Provides reliable retaining force for assembly hardware.

Replacement door balance spring for dishwashers. Provides tension so the door opens smoothly and stays in position. Needed when spring is rusted, broken, or stretched causing door to slam open or fall without resistance.

Replacement 8-32-thread screw used to secure panels, brackets and small components in compatible household appliances. Restores missing or stripped fasteners so panels and parts stay firmly attached during normal use. What it does:

• Secures trim, panels, brackets and control housings to maintain proper assembly.
• Replaces missing or damaged screws that can cause rattling, loose panels or misaligned components.
• Fits locations that require an 8-32 threaded fastener; correct length and head style for your application.
• Helps restore stable, vibration-free operation when worn or stripped fasteners are replaced.

• Disconnect power and water before servicing; wear eye protection and gloves.
• Use the correct screwdriver or driver bit to avoid stripping the screw head.
• Do not overtighten—turn until snug and secure to avoid damaging threads or surrounding parts.
• If the original used a washer or nut, reuse or replace as needed and the screw length and head type match the original.

Covers the dishwasher's electrical junction box under the unit. Replace if cracked, loose, or missing to restore safe wire enclosure and containment.

Door balance link kit for dishwashers. Connects door springs to control door movement. Replace if rope is frayed, broken, or plastic clips are cracked or worn.

Protective housing cap that encases the dishwasher thermostat. Replace if cracked, broken, or missing to properly shield temperature monitoring components.

Secures knobs, trim, or linkages to shafts inside your dishwasher. Replace if broken, cracked, or missing to prevent components from loosening.

The Insulation is an OEM part for Whirlpool dishwashers, specifically engineered to enhance the appliance's efficiency by reducing heat loss and minimizing noise. This insulation wraps around the dishwasher, acting as a barrier that keeps heat within the appliance during cycles and dampens the sound of its operation, making for a quieter kitchen environment.

Causes of a bad insulation part can include wear and tear over time, moisture damage leading to mold or mildew buildup, or physical damage from pests or mishandling during installation or repairs.

Symptoms of inadequate insulation include:

• Noticeable increase in the dishwasher's noise level
• Exterior surfaces of the dishwasher feeling warmer than usual
• Longer wash cycles due to inefficient temperature maintenance

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Secures the temperature sensor or thermostat to the dishwasher cabinet. Replace if the original bracket is cracked, broken, or missing hardware.

Fixes no heat during drying, wet dishes, or blinking sanitized light. This safety thermostat cuts power if water overheats. Moderate DIY repair.

Positions and supports the dishwasher tank assembly to maintain proper alignment. Replace if worn, cracked, or missing to restore correct spacing.

Spacer that mounts between dishwasher tank components to maintain proper alignment and reduce vibration. Replace if cracked, missing, or worn out.

Insulation pad that fits behind dishwasher panels to restore thermal protection and reduce noise. Replace if damaged, missing, or rattling occurs.

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.
