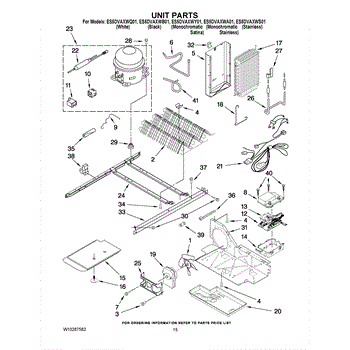

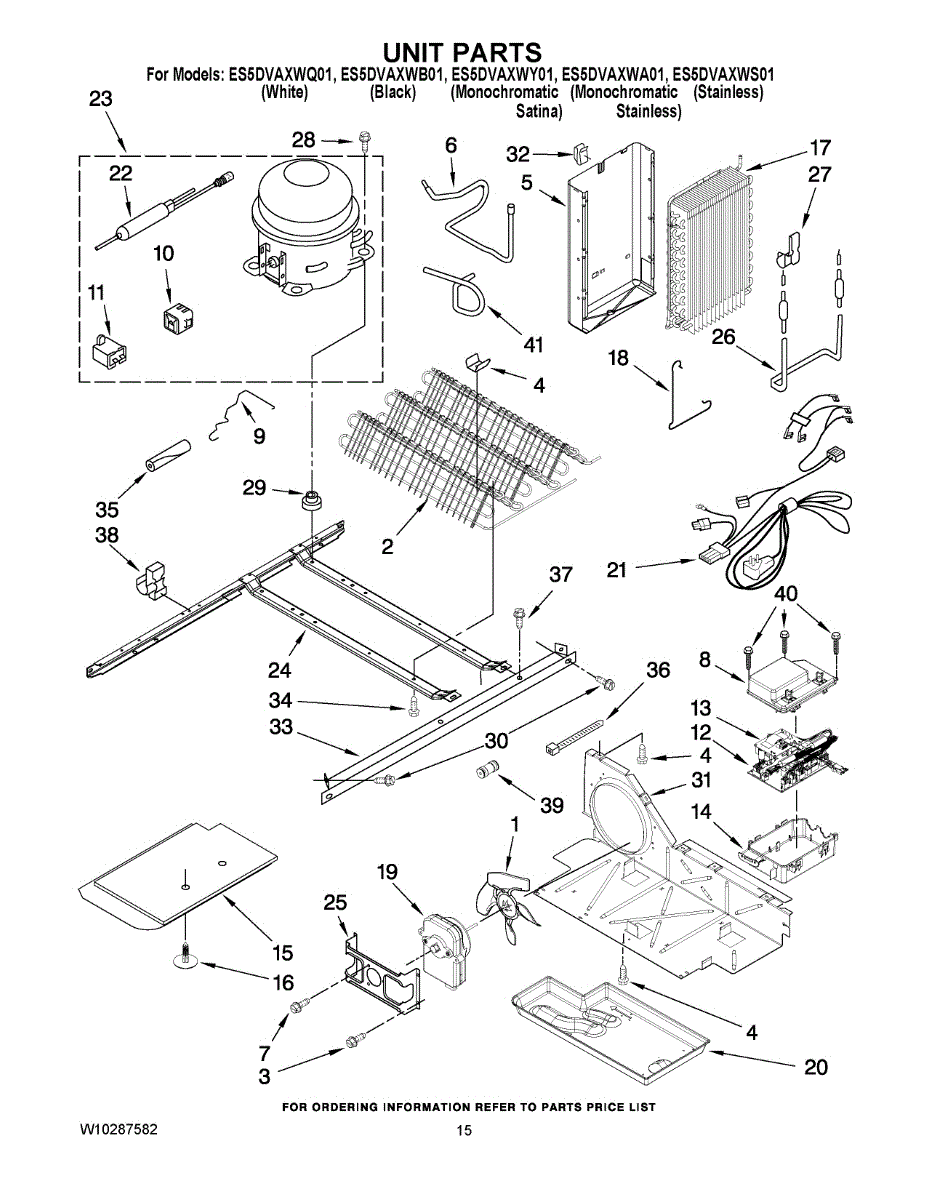

Parts for Whirlpool ES5DVAXWS01: 09 - Unit Parts

The Fan Blade is an OEM part for Whirlpool refrigerators. It is essential for circulating air throughout the refrigerator, ensuring that the temperature remains consistent and the cooling process is efficient. The fan blade helps distribute cold air from the evaporator coils to different parts of the refrigerator and freezer compartments, maintaining an even temperature throughout.

Over time, the fan blade can become damaged due to wear and tear, obstruction by debris, or impact from moving items within the refrigerator. If the fan blade is cracked, broken, or loose, it will not be able to circulate air effectively, leading to cooling issues and potential food spoilage.

Symptoms of a bad fan blade include:

• Unusual noises coming from the refrigerator
• Inconsistent cooling or warm spots within the compartments
• The refrigerator running more frequently or for longer periods
• Frost buildup in the freezer

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Refrigerator not cooling or freezer too warm? A faulty condenser may be the cause. This part helps dissipate heat for proper cooling performance.

Factory screw secures panels, brackets, and internal components in refrigerators and freezers. Replace missing, rusted, or stripped screws for secure fit.

Replacement clip for refrigerators and freezers. Secures shelves, bins, or internal components. Order a new clip if yours is broken, cracked, or missing.

Replace your refrigerator's suction tube if cracked, kinked, or leaking. This tube connects internal components in the cooling system. Exact fit part.

This is a replacement mounting screw used to secure appliance panels and small components. It provides a correct-fit fastener to restore secure attachment and eliminate rattles or loose parts. What it does:

• Secures trim, panels, brackets, or small assemblies to prevent movement and vibration
• Restores proper alignment when a worn or missing screw causes loose parts or noise
• Works as a direct-replacement fastener where the OEM screw specification is required

• One replacement screw

• Use the correct driver bit to avoid stripping the head; do not overtighten
• Disconnect power and follow appliance safety guidelines when accessing internal components
• If the original mounting hole or threads are damaged, repair or replace the mounting hardware before reinstalling

Refrigerator shelf retainer clip secures shelves and bins in place. Replace if cracked, broken, or shelves won't stay secure. Confirm fit with model number.

Refrigerator not cooling or compressor won't start? This start device assembly includes relay and overload. DIY-friendly 15-minute repair for most models.

The Run Capacitor is an OEM part for Whirlpool appliances, designed to provide the necessary electrical charge to start and run the compressor motor. This part attaches to the compressor to aids in maintaining a consistent motor speed and ensuring smooth operation. The run capacitor plays a crucial role in the appliance's electrical system, storing and releasing energy as needed to power the motor.

Causes of a bad Run Capacitor include electrical surges, wear and tear over time, or overheating, which can lead to a failure in providing the necessary start-up energy or maintaining motor speed.

Symptoms of a bad Run Capacitor include:

• The appliance does not start.
• The motor shuts off shortly after starting.
• The appliance is humming but not running.
• Increased energy consumption.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Fix a non-responsive display, malfunctioning buttons, or refrigerator that won't turn on. This control board manages your refrigerator's core functions.

This electronic control board manages oven functions and user interface so the range heats and operates correctly. Replaces a failed control board to restore oven mode selection, timers and display feedback. What it does:

• Receives input from the touchpad/knobs and directs power to the oven's heating elements and ignitor circuits
• Controls cooking modes, timers, clock and safety lock features
• Helps maintain correct oven cycles and temperature regulation when working properly
• Commonly replaced for symptoms like no display, unresponsive controls, error codes, or oven not heating

• One electronic control board

• Disconnect power at the breaker before removing the range or oven back panel
• Handle the circuit board by its edges and avoid touching component leads or connector pins
• Confirm connectors match and seat fully; take a photo of wiring before disconnection

Replace your refrigerator's main cabinet housing enclosure. This structural part supports internal components and maintains alignment. Ideal for cracked or damaged housings.

Freezer not cooling or excessive frost buildup? The evaporator assembly circulates refrigerant to remove heat. Moderately difficult repair for DIYers.

Fix frost buildup in your refrigerator with this defrost heater mounting clip. Secures heater to evaporator for consistent defrosting performance.

Refrigerator not cooling but freezer works? A failed condenser fan motor prevents heat from escaping. DIY repair takes 10-20 minutes with basic tools.

Water leaking from bottom of fridge? Cracked evaporator drip tray lets defrost water escape. Moderate DIY repair, about 45-60 minutes with our guide.

Fix electrical issues in your refrigerator with this wire harness. Repairs faulty connections causing power problems or component failures. Direct fit.

Refrigerator not cooling properly? A clogged filter drier prevents proper refrigerant flow. Requires professional installation due to sealed system.

Fix a refrigerator that won't cool or runs but produces no cold air. This compressor requires professional installation due to refrigerant handling.

Support frame for refrigerators. Mounts internally to provide structural support. Replace if cracked, broken, or damaged to restore proper alignment.

Refrigerator not cooling properly? A damaged condenser fan motor bracket causes fan wobble and poor airflow. This mounting bracket restores stability.

Ice buildup in freezer or warm fridge? This defrost heater melts frost from evaporator coils during the defrost cycle. Moderate DIY repair with video guide.

Rubber grommet kit that mounts and cushions the compressor. Replace worn, cracked, or damaged grommets to restore proper support and isolation.

Rubber grommet kit that mounts and cushions the compressor. Replace worn, cracked, or damaged grommets to restore proper support and isolation.

8 x 1/12

Fix uneven cooling and warm spots in your refrigerator with this air baffle. Directs cold air properly throughout compartments. Simple DIY fix.

Door shelf support rail for side-by-side refrigerators. Mounts inside the door to hold shelves and bins. Replace if cracked, broken, or missing.

This is a replacement 1/4-20 threaded screw used to secure appliance components and panels. It restores proper fastening where a matching screw is missing, loose, or stripped and helps stop rattling or misalignment. What it does:

• Secures panels, brackets, and assemblies to maintain proper alignment and reduce vibration
• Replaces missing or damaged fasteners that cause loose or rattling parts
• Works wherever a 1/4-20 threaded screw is specified by the manufacturer
• Simple mechanical fastener—no electrical or calibration changes required

• Disconnect power to the appliance before servicing to avoid injury
• Use the matching driver and thread engagement; do not overtighten to prevent stripping
• Verify screw length and head type match the original before installing
• If threads are damaged, repair or replace the mating component rather than forcing the screw

Replacement clip for your refrigerator. This small fastening component secures interior parts in place. Order a new one if yours is broken or missing.

Mounting screw for refrigerator assembly. Secures internal components and panels. Replace if stripped, rusted, missing, or damaged during repairs.

Refrigerator not cooling or making unusual noises? This compressor system tube connects critical sealed system components for proper refrigerant flow.

Size: 1/2 inch.

Size: 5/8 inch.

Size: 3/16 inch.

Size: 3/4 inch.

Size: 1/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.
