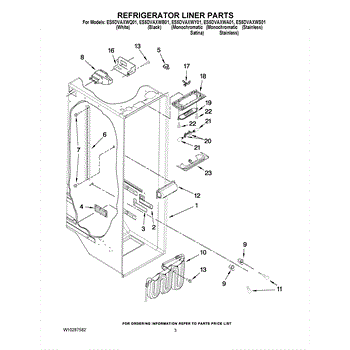

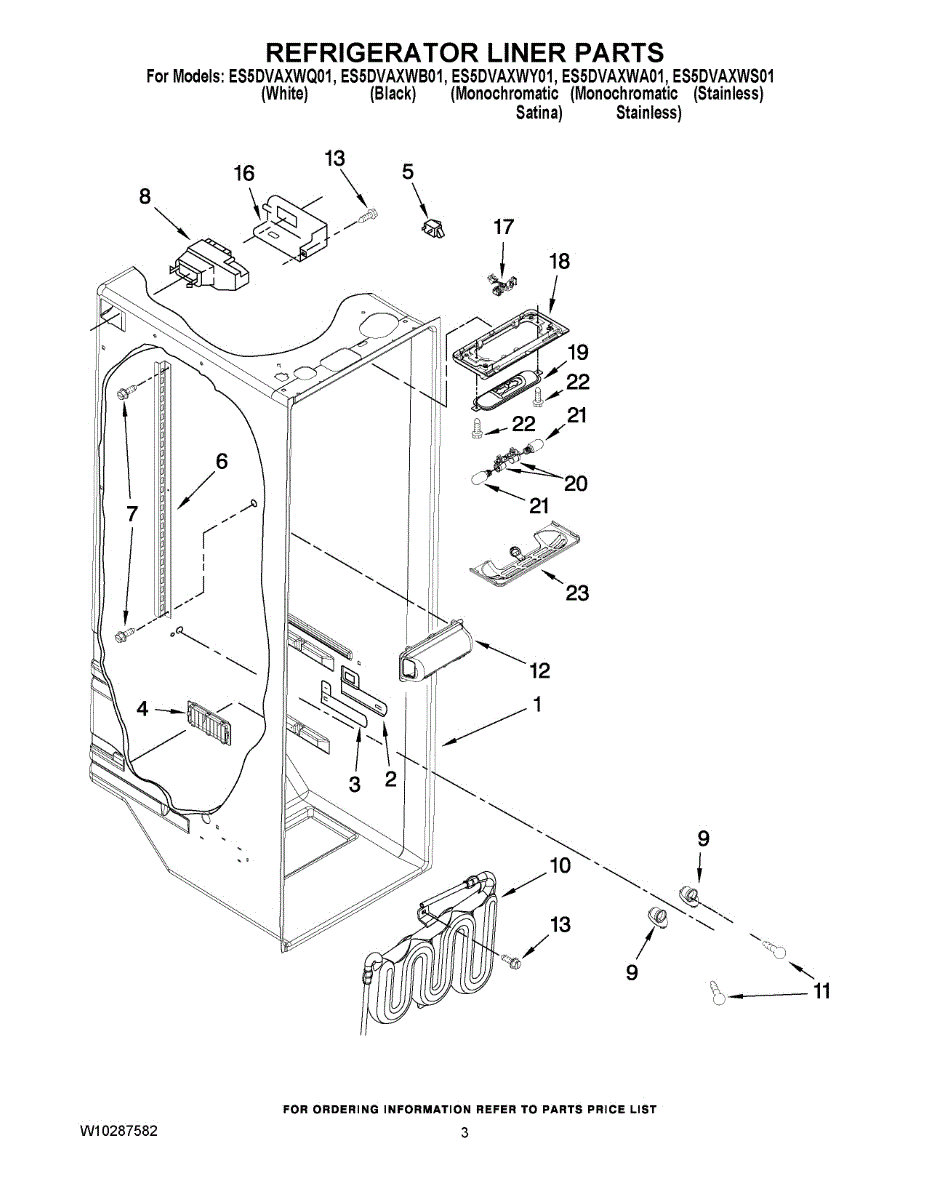

Parts for Whirlpool ES5DVAXWS01: 02 - Refrigerator Liner Parts

Control panel escutcheon trim for side-by-side refrigerators. Decorative cover that frames control knobs and buttons. Replace if cracked or discolored.

Refrigerator shelf slide that supports and guides shelves for smooth movement. Replace if cracked, broken, or worn to restore proper shelf function.

Refrigerator light won't turn off or on? The door switch detects when the door opens and closes. Easy 5-minute DIY repair with a pick tool or scraper.

Shelf ladder support for refrigerators. Installs inside the fresh food compartment to hold shelves in place. Replace if cracked, broken, or missing.

Replacement fastener screw for appliances. Secures panels, trim, clips, and components. Needed when original screws are stripped, missing, or damaged.

This diffuser—often called the refrigerator air damper—controls how much cold air flows from the freezer into the fresh food compartment. Replacing a worn diffuser helps restore even cooling and more stable temperatures throughout the refrigerator. What it does:

• Opens and closes to regulate airflow from the freezer to the refrigerator
• Helps maintain set temperatures and reduce warm spots or over-cooling
• Common symptoms: fresh food too warm while freezer is OK, food freezing on shelves, weak airflow from upper vents, or clicking/buzzing from the diffuser area
• Helps address frost or condensation near the diffuser outlet

• 1 diffuser

• Disconnect power before servicing
• Access from the refrigerator section; remove shelves/air duct covers as needed
• Note wiring and orientation; remove mounting screws/clips and transfer any seals/insulation if present
• After installation, restore power and allow up to 24 hours for temperatures to stabilize

Refrigerator light won't turn on? This light socket kit restores interior lighting when bulbs won't work. Simple DIY repair with video guide.

The Water Reservoir Tubing is an OEM replacement part for Whirlpool refrigerators. It is a flexible plastic tubing that replaces the water reservoir and holds the water for the ice maker and dispenser.

Causes can include cracks from heat or cold exposure over time, punctures from sharp edges during installation, or deterioration of plastic tubing that impacts integrity.

Symptoms of bad water reservoir tubing include:

• Inaccurate or inconsistent ice production
• Leaks or water spills near the reservoir or ice maker
• Kinks or ruptures in the tubing that obstruct water flow
• Mineral buildup that clogs or restricts the line

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

Note: As per manufacture this is no longer a tank. The tank style has been updated with coiled tubing.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

Covers and protects your refrigerator's light source. Replace if cracked, yellowed, or missing to restore clear illumination. Confirm fit by model number.

This is a replacement screw designed to work with a wide range of household appliances. It is used for many purposes in these appliances, from holding body panels together to securing electronics into control boards. However, screws are subject to damage through corrosion, impact, and improper installation/removal. In most cases, the primary damage to this screw is through corrosion – it may become rusted or corroded in place, depending on the appliance and the maintenance provided during its lifespan. The screw may also be stripped or rounded due to improper removal or installation. If the screw is damaged, lost, or corroded in place, it will need to be replaced. In most cases, removal will require nothing more than a Phillips head screwdriver or the appropriately sized socket with a ratchet. However, if the screw is damaged, it may require a tap set to remove it from its mounting location. Note that this is a genuine OEM replacement screw made from durable, high-quality metal, and is sold individually. It fits Whirlpool, Maytag, Roper, Estate, Amana, Crosley, and Thermador appliances. It is used in over 150 machines, ranging from washers and dryers to air conditioners.

Refrigerator cover that installs to conceal internal components or protect specific areas. Replace if cracked, broken, discolored, or missing.

Wire harness assembly for refrigerators. Connects electrical components inside your unit. Replace if wires are frayed, damaged, or connectors are broken.

Replacement outer door trim for refrigerators. Restores the finished edge around the door and covers the seal. Direct-fit part for cracked, dented trim.

Protective shield guard for side-by-side refrigerators. Installs to protect internal components. Replace if cracked, broken, or missing.

Light bulb socket holds and powers the bulb inside your refrigerator. Replace if lights don't work despite new bulbs or if socket is cracked or damaged.

Illuminates appliance interior. Replace when burned out or dimming. Verify wattage and base type match your model before ordering. Easy DIY fix.

Secures panels, brackets, and internal components in your refrigerator. Replace missing, stripped, or corroded screws to restore tight assembly fit.

This replacement light lens covers and protects the appliance control panel light while diffusing illumination for clearer, less-glare visibility. Restores the control area's appearance and helps ensure even lighting across the panel. What it does:

• Protects the control panel light from dust, spills and impact.
• Diffuses and directs internal light to reduce glare and improve visibility of controls.
• Replaces cracked, discolored or missing lenses that cause uneven or dim lighting.
• Helps maintain the original look of the control area and prevents further wear to the light assembly.

What's included: One replacement light lens. Install notes:

• Disconnect power to the appliance before starting any repair to avoid shock or injury.
• Typically installs behind or over the control panel; may require removing trim or a few fasteners.
• Handle the lens carefully to avoid scratching; use a non-abrasive cloth for cleaning.
