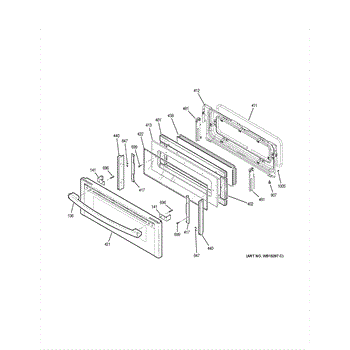

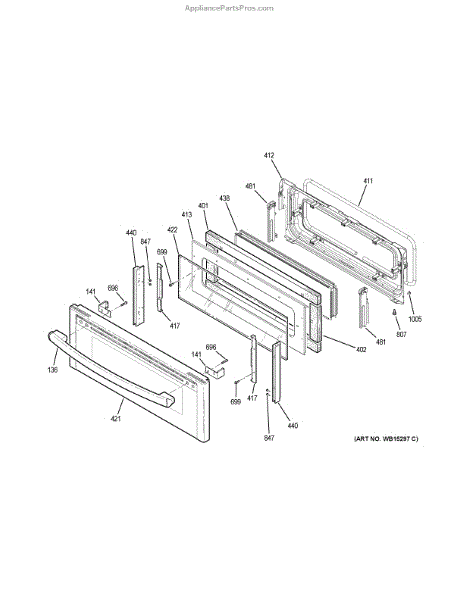

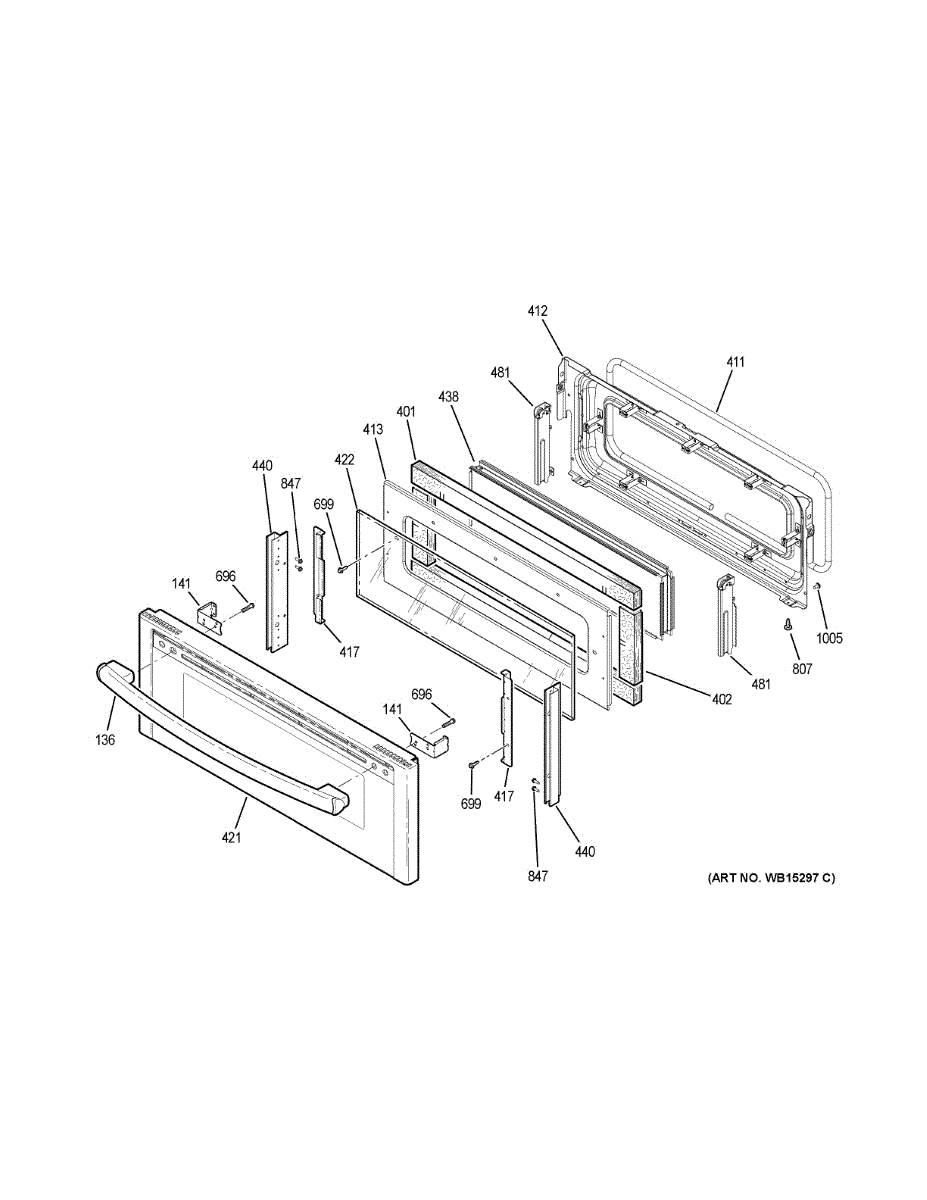

Parts for Ge PS950SF3SS: Upper Door Parts

The Handle and End Cap Assembly is an OEM part for GE ovens. This assembly comprises the handle used to open and close the oven door, along with the end caps that secure the handle firmly in place. The handle measures 27.5 inches long

Over time, the handle and end caps can become worn or damaged due to frequent use, exposure to high temperatures, or accidental impact. Such issues can make it challenging to operate the oven door properly and safely.

Symptoms of a bad Handle and End Cap Assembly include:

• Difficulty in opening or closing the oven door
• A loose or wobbly handle
• Visible cracks or damage to the handle or end caps
• The handle detaching from the oven door

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Spacer bracket that mounts between the range door handle and the door panel. Replace if the original bracket is cracked, broken, or missing.

Replace worn or missing oven door top insulation. Installs at the upper edge of the door to provide thermal protection and sound dampening. Essential part.

This Oven Door Gasket forms a heat-resistant seal between the oven door and the front frame. Replacing a worn seal helps your oven preheat efficiently, hold temperature more consistently, and keep heat and spills contained.

• Creates a perimeter seal to retain heat and support even baking
• Helps reduce long preheat times and noticeable temperature swings
• Replace if the gasket is torn, frayed, hardened, flattened, or leaking heat around the door
• Restores proper door closure feel and uniform contact

• Disconnect power and allow the oven to cool completely before servicing.
• Open the door and remove the old gasket by releasing it from its existing mounting points.
• Install the new gasket into the same points without stretching; ensure an even seal around the full perimeter before use.

Replaces the stainless steel upper outer panel on your range oven door. Restores appearance when original is dented, scratched, or corroded.

Inner glass panel for range oven door. Installs between outer and inner door layers. Replace if cracked, chipped, shattered, or missing to restore appearance.

Upper window pack assembly that replaces a cracked or damaged refrigerator door window panel, restoring appearance and helping protect the components behind the outer window. What it does:

• Replaces the upper door window pack to restore a clear, finished exterior on the appliance door.
• Addresses visible damage symptoms such as cracked, scratched, cloudy or broken window panels.
• Protects internal door components from exposure to moisture and debris.
• Matches the OEM-style mounting points for a like-for-like replacement when used with the correct model parts.

• Disconnect power and remove food from the door area before starting any repair.
• Handle the window pack carefully; wear cut-resistant gloves and eye protection when removing broken or cracked pieces.
• Remove any trim or fasteners per the appliance's service instructions; retain mounting screws and gaskets as needed.
• Refer to the OEM service manual or diagram for model-specific removal and reassembly steps.

Upper hinge receiver for oven doors. Secures the door hinge assembly to the cabinet frame. Replace if cracked, broken, or missing for proper alignment.

Hex head machine screw with 10-32 thread, 1-3/4 inches long. Secures brackets, panels, and internal oven components. Replace missing or stripped screws.

ST10-16 X 7/16"

Truss head screw for fastening oven panels, trim, and brackets. Replace if missing, stripped, or corroded to secure loose components and panels.

Mounting screw secures range components and panels. Replace if screw is stripped, missing, or damaged during appliance repair or maintenance work.
