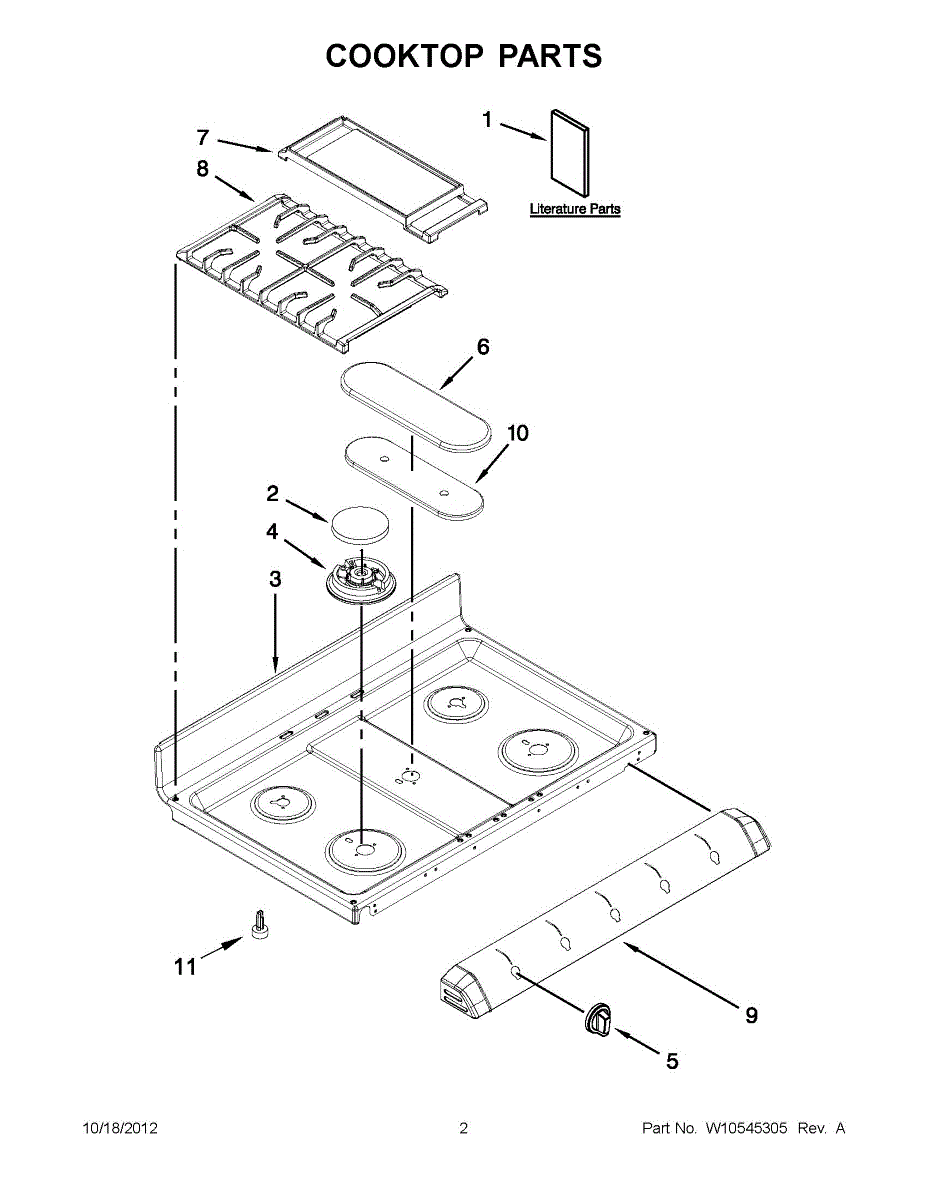

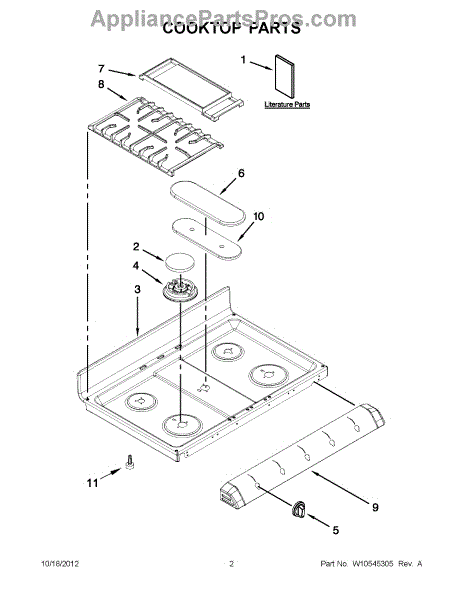

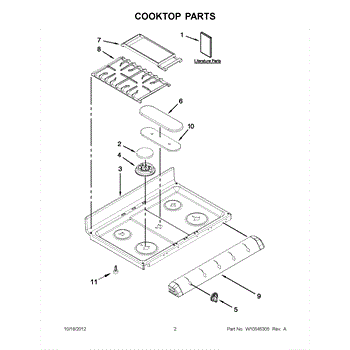

Parts for Kitchenaid KDRS505XSS03: 01 - Cooktop Parts

Kit contains 4 burner caps

Stainless steel main cooktop surface for gas ranges. Replaces damaged, scratched, discolored, or worn cooktop panels. Restores appearance.

This burner head base is the metal support that sits beneath a cooktop's surface burner, providing a stable mounting point and directing flame for even heating. It replaces damaged or corroded bases to restore safe burner operation. What it does:

• Supports the surface burner cap and burner tube to keep the burner properly aligned
• Directs gas flow from the burner tube to the burner ports for consistent flame pattern
• Helps prevent burner wobble, poor ignition, and uneven heating when functioning correctly
• Fits as the lower portion of the surface burner assembly and works with the burner cap and orifice

• Turn off the appliance and disconnect power and gas supply before service
• Remove burner cap and grate to access the burner assembly; handle components gently to avoid damaging the cap or igniter
• Verify correct alignment of the burner tube and base before reassembly to ensure proper ignition

Auxiliary burner head for gas ranges and cooktops. Mounts over the orifice to distribute gas through precision ports. Replace if clogged or damaged.

Burner head for gas ranges and cooktops. Distributes gas evenly to create a proper flame. Replace if cracked, damaged, or clogged with buildup.

This burner head mounts on the cooktop and distributes gas evenly to produce a steady flame. Replacing a worn or damaged head restores proper flame pattern and helps your burner light quickly and cook consistently.

• Directs gas through precisely sized ports to create an even flame
• Can resolve issues like uneven flames, yellow/orange flames, or delayed ignition
• Helps when the burner won't light or only lights partially
• Replaces a corroded, clogged, or warped burner head

• Disconnect power and shut off gas supply before servicing
• Allow the cooktop to cool completely
• Lift off the grate and cap; remove the old head and align the new head on the burner base
• Ensure ports are clean and seated correctly; test for proper ignition and flame

Color: Stainless


Color: Black

Replacement grate kit for gas range cooktops. Restores stable cooking surface. Replace cracked, chipped, rusted, or worn grates for secure cookware support.

Color: Stainless


The burner base is the metal burner head that supports the burner cap and directs the cooktop flame. Replacing a damaged burner base helps restore steady ignition and more even heat for everyday cooking. What it does:

• Provides the mounting surface and gas-port pattern for a surface burner and accepts the burner cap.
• Directs the flame for consistent heat across cookware.
• Common symptoms of a failing burner base: uneven or weak flame, burner won't light, visible corrosion or physical damage.
• Can cause repeated ignition attempts or poor heating when cracked, bent, or clogged.

• Turn off electrical power and the gas supply before servicing the range.
• Remove burner grates and caps to access the base; depending on model the base may lift out or be secured with fasteners.
• Inspect the igniter and surrounding components while replacing the base; reassemble and test the burner for proper ignition and flame pattern.

Supports and guides your range drawer for smooth opening and closing. Replace when drawer sticks, drags, or derails. Verify fit with your model number.
