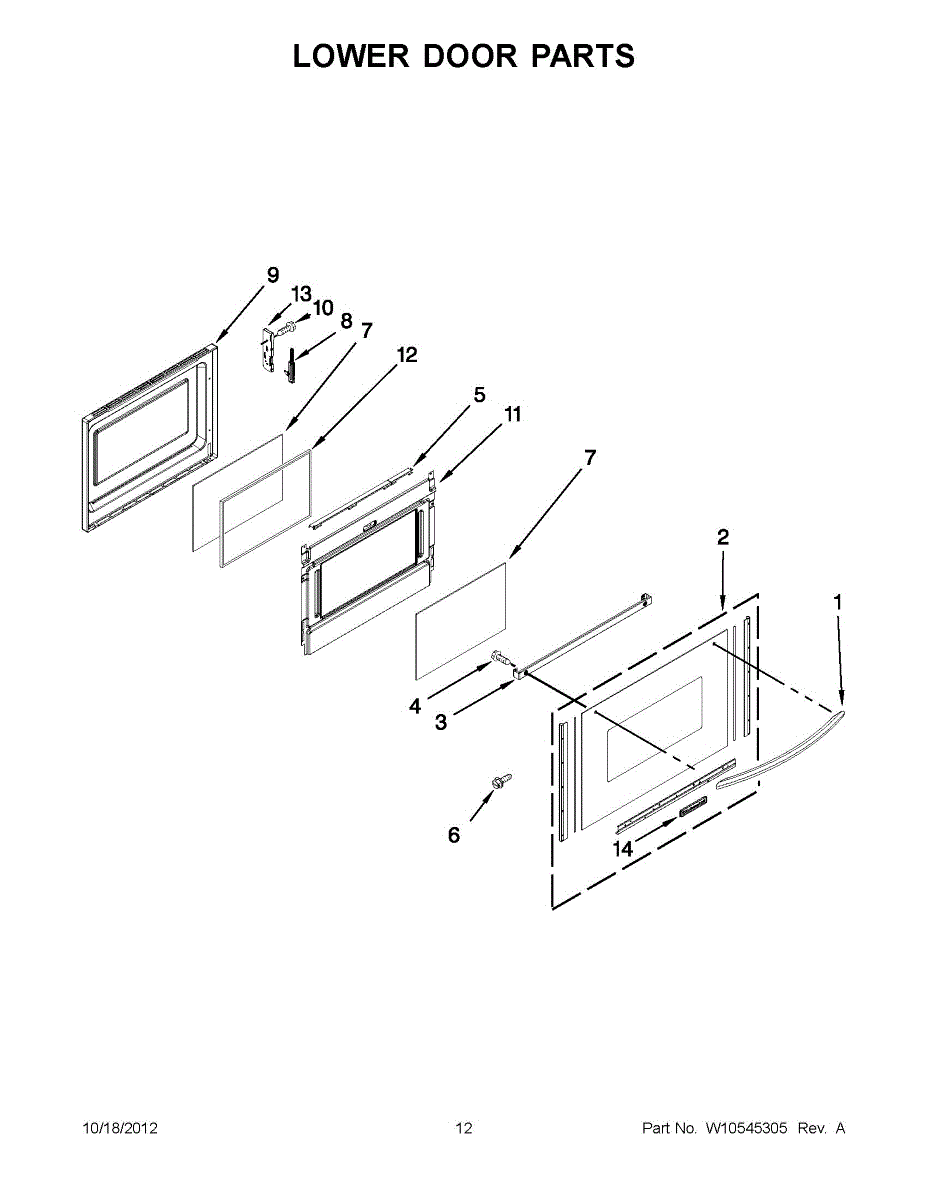

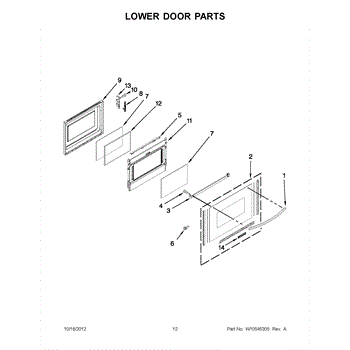

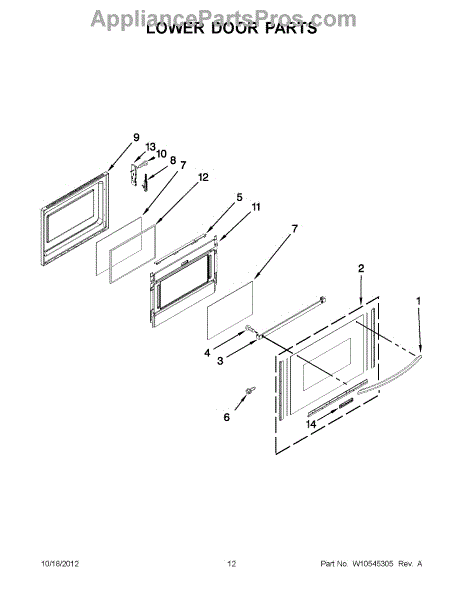

Parts for Kitchenaid KDRS505XSS03: 06 - Lower Door Parts

Stainless steel door handle for gas ranges, ovens, and microwaves. Replace your cracked, loose, or broken handle to restore appearance and functionality.

Color: Stainless

Mounting bracket secures range components to the frame or chassis. Replace if bracket is bent, cracked, broken, or missing to restore proper support.

A factory screw with 8-32 machine threads used to secure brackets, panels, and internal components where specified. Restores a solid, factory fit when the original fastener is missing, stripped, or corroded. What it does:

• Provides the specified 8-32 machine-thread fastening for OEM components
• Helps prevent looseness, vibration, or rattling from a missing/damaged screw
• Replaces screws with worn heads or stripped threads to enable proper tightening
• Supports correct reassembly during part replacement or service

• 1 screw

• Disconnect power; shut off water and/or gas before servicing
• Match the new screw to the original for thread and length before installing
• Start threads by hand to avoid cross-threading; tighten until snug
• Do not overtighten into plastic or thin metal; replace damaged inserts/clips if found

• Thread size: 8-32 (machine)

Replace your range oven door window frame if cracked, broken, or missing. This structural component holds the glass in place on the oven door assembly.

This 8-32 x 3/8 screw secures panels, brackets, and internal components in your appliance so everything stays aligned and tight. Replace worn or missing hardware to restore a solid, rattle-free fit and safe operation.

• Fastens components to frames, brackets, or panels
• Helps reduce vibration, rattling, and misalignment
• Replaces missing, stripped, or corroded screws
• Correct 8-32 machine thread for tapped holes in compatible assemblies

• Disconnect power before servicing; shut off gas or water if applicable
• Start threads by hand to avoid cross-threading
• Tighten snugly without overtightening to prevent stripping

Inner glass pane for oven door window. Installs inside the door frame. Replace if shattered, cracked, or broken to restore safe viewing and thermal insulation.

Replace your right oven door hinge to restore proper alignment and smooth operation. Fixes sagging doors and gaps for a secure seal. Confirm fit by model.

Replace your oven's left door hinge to restore smooth opening and closing. Fixes door sag, misalignment, and sealing issues. Verify fit with your model.

This ground screw secures the appliance's grounding wire or strap to the chassis or terminal area, creating a reliable bonding point. Replace a missing or damaged screw to restore a proper ground connection during installation or service.

• Provides the designated bonding point for the grounding wire/strap
• Fastens to the frame or terminal area using 8-32 machine threads
• Helps maintain a consistent ground path for safe operation
• Typical reasons to replace: stripped head/threads, corrosion, or a missing screw

• Disconnect power at the breaker or unplug the appliance before servicing
• Route the ground wire/strap to the specified grounding location
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Ensure the ground connection is secure and complies with local electrical codes before restoring power

Secures the control panel on your range. Replace this retainer if it's cracked, broken, or missing to keep the panel properly mounted and aligned.

Replacement hinge receiver for range oven doors. Secures the door hinge to the frame. Replace if cracked, broken, or worn to restore proper door support.

Replacement oven door hinge receiver for ranges. Mounts to the oven frame to secure the door hinge. Order a new receiver if yours is cracked or broken.

Color: Stainless
