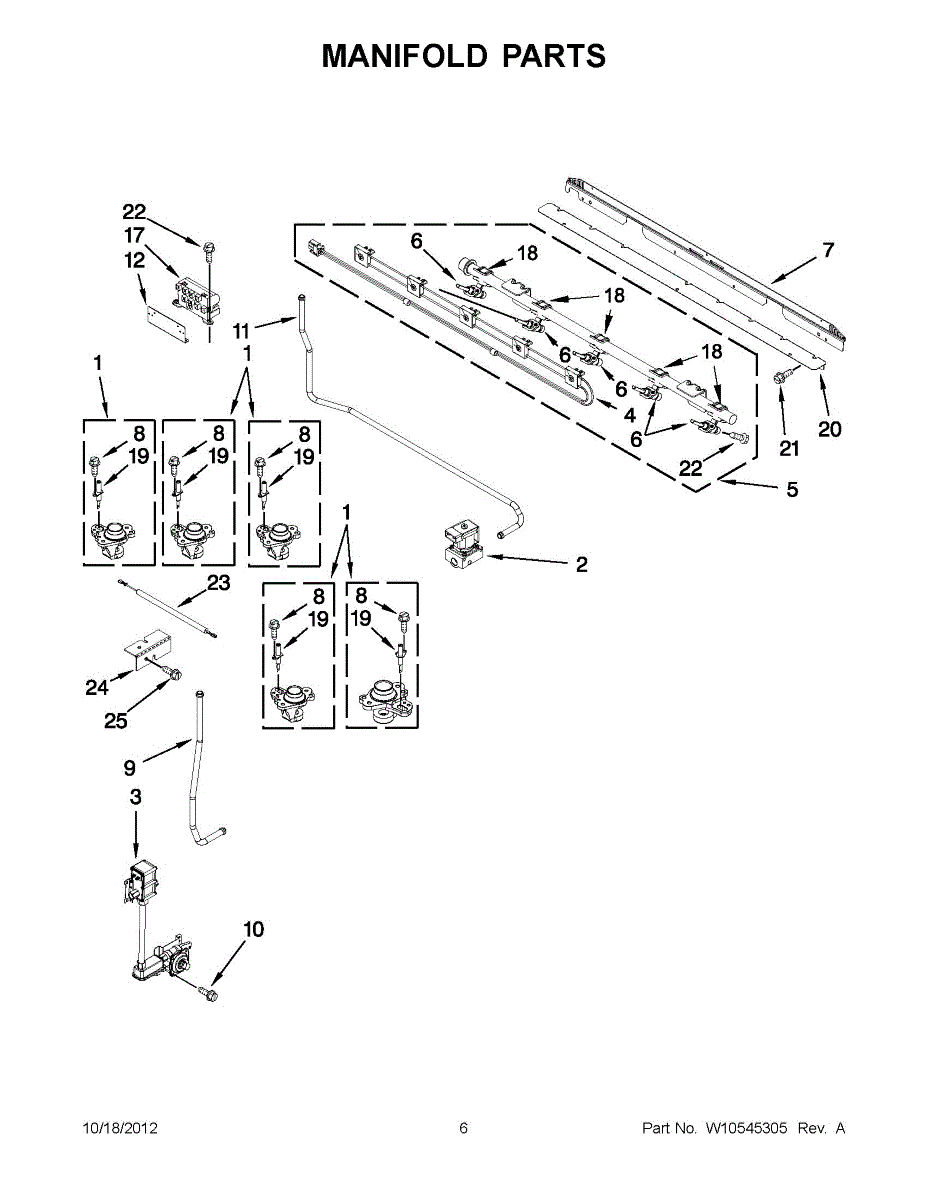

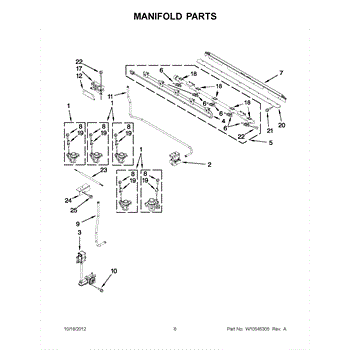

Parts for Kitchenaid KDRS505XSS03: 03 - Manifold Parts

Fix weak or uneven flames on your range's right-rear burner. This orifice holder secures the gas orifice for reliable ignition and consistent heat.

If your range burner won't ignite or flames are uneven, a worn orifice holder may be letting gas flow incorrectly. This part secures the orifice to the valve.

ORIFICE,HOLDER RF 10K GE

ORIFICE,HOLDER LF 16K GE

Fix burners that won't ignite or only spark with certain knobs. This wire harness restores electrical connections between switches and valves. DIY-friendly, typically 20-30 minutes to install.

Burner won't turn off or ignite? This manifold assembly distributes gas to all control valves. Moderate DIY install—use leak detection fluid.

Controls gas flow to individual cooktop burners on gas ranges. Replace if valve stem is bent, broken, or stuck, preventing smooth knob operation or shutoff.

The Burner Valve is an OEM replacement part for  Whirlpool gas cooktops and ranges. Each burner valve controls the flow of gas to its corresponding surface burner element.

Causes of a bad burner valve can include wear and degradation of internal mechanisms from years of continuous heating cycles. Mineral or debris buildup restricting gas flow is also possible.

Symptoms of a bad Burner Valve include:

• Inability to ignite or control individual burners
• Unstable, weak, or over-sized flames that cannot be adjusted
• Gas leaks detected around the valve area
• Premature failure if burners cannot be turned off properly

This OEM Whirlpool part is also compatible with Maytag, Jenn-Air and some Kenmore models.

The Valve is an OEM part for Whirlpool gas ranges. It plays an important safety role in controlling the flow of gas fuel to the range's burners.

Causes of a bad gas valve can include wear and tear over extended use, mineral deposits clogging the valve's small passages, or physical damage affecting its precision-controlled mechanisms.

Symptoms of a faulty gas valve include:

• Burners that will not light or that light unpredictably
• Inability to adjust burner flames properly
• Gas odors detecting around the range

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore gas models.

This range screw is an OEM replacement part sourced directly from the manufacturer for gas stove burners. These screws attach the ignitor to the burner. Screws may corrode and rust during everyday use. Spills and accidents on the range top may leak down to the screws and cause them to become worn. Screws are not considered part of the ignitor kit or burner kit and will need to be purchased separately. If the screws appear rusty or corroded while replacing the ignitor, it is beneficial to replace them. It is a good idea to purchase the screws at the same time as the parts are purchased so that they are available when needed. A Phillips head screwdriver is necessary to remove and replace the old screws. Make sure the power and gas are disconnected before installing the new screws.This screw is made of silver metal and is a Phillips head screw that is sold individually. Verify the number of screws needed before ordering. This screw is designed for use in gas ranges manufactured by Whirlpool, KitchenAid, Roper, Estate, Inglis, Maytag, Amana, Jenn-Air, and Crosley.

Gas supply tube that connects your range to the gas line. Replace if the tube is cracked, damaged, or leaking to restore safe gas flow to your appliance.

Gas supply tube for gas ranges. Connects the gas line to burners or oven. Replace if cracked, kinked, damaged, or showing signs of wear or corrosion.

Fix continuous clicking or no-ignite issues on gas range burners. This spark module controls ignition timing and generates sparks to light surface burners.

Mounting bracket for gas ranges. Secures components in place. Replace if bent, broken, or missing. Direct fit for compatible range models.

Fix clicking without igniting or burners that won't light. This surface ignitor creates the spark to reliably ignite gas cooktop burners.

Burner won't light or clicks excessively? This spark electrode ignites the gas on your cooktop. Simple repair restores reliable ignition in minutes.

Self-tapping screw used in range assembly. Features 8-18 thread size and 0.375 inch length. Also used in some washer models as cross-appliance hardware.

Orifice spud secures the burner orifice to the gas valve/manifold and directs fuel to the burner for proper flame performance. Replaces a damaged or corroded spud to help restore correct gas flow at the burner. What it does:

• Holds the burner orifice in place and channels gas from the valve to the burner.
• Helps maintain consistent flame size for even heating and cooking.
• Commonly used when a burner has weak, uneven, or intermittent flame performance.
• Replace if the spud is cracked, corroded, damaged, or leaking.

• Turn off the appliance's gas supply and disconnect power before beginning any repairs.
• Remove burner components per the service manual and install the spud in the same orientation as the original.
• Hand-start threads, then snug with the appropriate wrench—do not overtighten.
• After installation, check fittings for leaks with an approved leak-detection method; if you smell gas or suspect a leak, stop.
