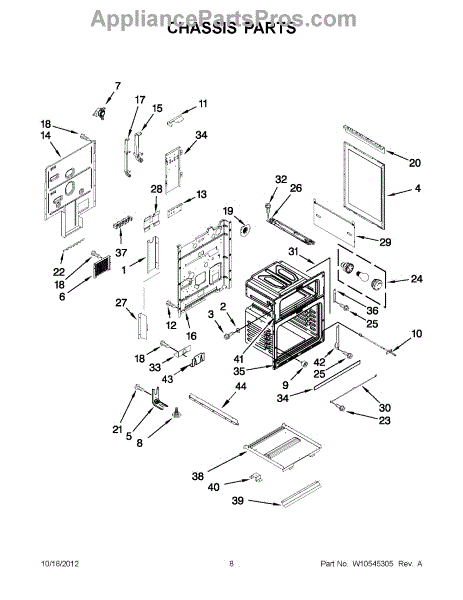

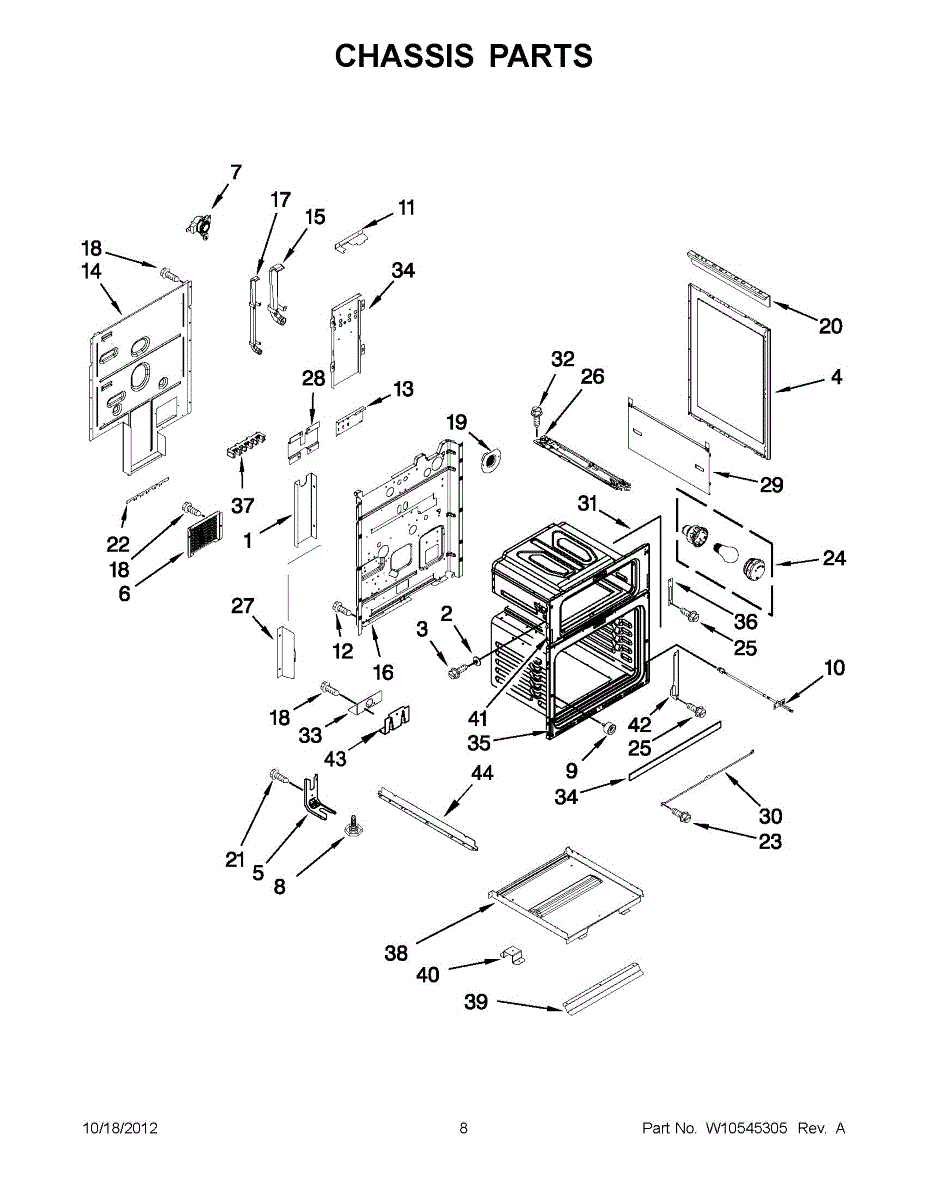

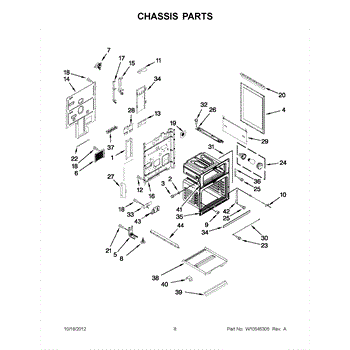

Parts for Kitchenaid KDRS505XSS03: 04 - Chassis Parts

Positions and supports the side panel for proper alignment and spacing. Replace when the original spacer is cracked, broken, or missing to restore fit.

Replacement screw for electric and gas ranges. Secures internal components and panels. Order a new screw if yours is stripped, missing, or damaged.

Anti-tip bracket bolts to the floor behind your range to prevent tipping. Replace if missing, bent, or damaged during moving or installation.

Oven won't heat or stops heating during cleaning cycle? The high-limit safety switch cuts power when temperatures exceed safe limits. Moderate DIY fix.

Adjustable leveling leg that stabilizes and balances your range. Replace if cracked, broken, bent, or threads are stripped from wear or impact damage.

This small replacement bumper cushions contact points to reduce noise, prevent wear, and help doors or panels close more quietly and sit flush. Use it to restore proper cushioning where an original bumper is worn or missing. What it does:

• Absorbs shock and prevents metal-to-metal contact that can cause noise or chipping
• Helps doors, panels, or components close more softly and remain properly seated
• Reduces vibration transferred to surrounding parts for quieter operation
• Restores protective spacing to prevent rubbing and premature wear

• Disconnect power to the appliance before servicing and follow the manufacturer's safety instructions
• Typically installs at the contact point; remove the old bumper and press or place the replacement into position
• If the bumper uses adhesive or a fastener, use the same method indicated by the OEM for secure fitment

Oven displaying error codes or baking unevenly? The temperature sensor monitors cavity heat and signals the control. Moderate DIY repair in 30-45 minutes.

This rear cover replaces the dryer's rear panel to protect internal components and restore the unit's enclosure. It helps keep wiring and components shielded while maintaining proper airflow and appliance appearance. What it does:

• Protects internal wiring, terminals and components from dust and damage
• Provides the enclosure for the dryer's rear area and vent connection points
• Reduces rattling and drafts caused by a cracked or missing rear panel
• Helps prevent excess lint accumulation around rear components

• Disconnect power (and gas supply if applicable) before servicing
• Remove the dryer from the wall and lay it on a protected surface to access the rear
• Typical installation requires removing screws and aligning the cover before fastening; use basic hand tools
• Watch for sharp edges and take care not to pinch wiring or hoses during reassembly

This lower vent tube routes exhaust/condensate away from the appliance to maintain proper airflow and drainage. Replacing a damaged vent tube restores correct venting and helps reduce leaks, noises, or performance issues tied to poor airflow. What it does:

• Channels air or condensate from the appliance's venting area to the lower exhaust/drain connection
• Prevents leaks and directs moisture away from internal components
• Helps restore proper airflow and reduces unusual sounds caused by damaged or collapsed tubing
• Used when visible cracks, holes, blockages, or detachment are found in the existing lower vent

• One lower vent tube (single piece as shown)

• Disconnect power and water (if applicable) before starting any repair
• Inspect mating seals and clamps; replace if worn to ensure a secure, leak-free fit
• Handle gently to avoid kinking; route the tube the same way as the original for correct airflow/drainage

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Secures and stabilizes internal range components, keeping panels and assemblies properly aligned. Replace when your mounting bracket is broken, bent, or missing.

Replace missing or stripped screws for your range anti-tip bracket. This 2-piece hardware set secures the bracket to the wall or floor for stability.

Color: Black. For biscuit order 98008169. For white order WP98008544.

Light socket assembly houses your oven bulb and provides electrical connections to illuminate the interior. Replace when bulb won't stay secure or light fails.

Size: 8-18 x 3/8 inch.

Oven door won't close or displays F5/E1 error? This door latch assembly secures the door and engages the safety interlock for proper operation.

This oven door gasket creates a tight seal around the oven door to help keep heat and moisture inside for more even baking and cooking. It replaces a worn or torn seal to reduce heat loss and improve oven performance. What it does:

• Seals the oven door to prevent heat and smoke from leaking during operation
• Helps maintain consistent oven temperatures for more even cooking and baking
• Reduces energy loss and prevents exterior surfaces from getting excessively hot
• Addresses symptoms like visible gaps, burned or brittle rubber, smoke escaping, or longer cook times

• Disconnect power to electric ovens or shut off gas supply and pilot for gas ovens before installing
• Allow the oven to cool completely before starting work to avoid burns
• Remove the oven door or open it per your model's service instructions to access the gasket channel; replace gasket by seating it evenly around the door frame
• Inspect the gasket channel for debris and clean before installing; do not use adhesives unless specified by the manufacturer

Seals oven door to maintain cooking temperature and improve efficiency. Replace if worn, torn, or heat escapes. Confirm fit with your model number.

Replacement screw for range and oven assemblies. Secures panels, brackets, and internal components. Order if original is stripped, missing, or damaged.

Replacement bracket for electric and gas ranges. Secures and supports internal components. Order a new one if yours is bent, broken, or missing.

Mounting bracket for range installation. Secures and stabilizes your appliance. Replace if bracket is bent, cracked, rusted, or missing hardware.

Front frame for electric ranges. Surrounds the door opening and attaches to the main cabinet. Replace if dented, cracked, or damaged from impact.

The Terminal Block is an OEM part for Whirlpool ranges. It serves as a crucial connection point for the range’s electrical wiring, ensuring a safe and reliable transfer of power to the appliance.

Over time, terminal blocks can deteriorate due to factors such as heat exposure, electrical surges, or wear and tear. When the terminal block becomes damaged or corroded, it can lead to poor electrical connections or potential safety hazards.

Symptoms of a bad terminal block include:

• Burnt or scorched connections
• Intermittent power loss to the range
• Difficulty in the range heating up properly
• Visible damage or corrosion on the terminal block

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Insulation for range oven doors that prevents heat loss. Replace if the insulation is damaged, torn, compressed, or missing to restore energy efficiency.

Oven insulation wraps around the cavity to retain heat and improve efficiency. Replace if damaged, compressed, or causing heat loss. Verify fit with your model.

Insulation panel for range oven doors. Installs between door panels to maintain heat efficiency. Replace if torn, compressed, or missing.

Insulation panel for range oven doors. Provides heat retention and energy efficiency. Replace if worn, damaged, or missing to restore proper insulation.
